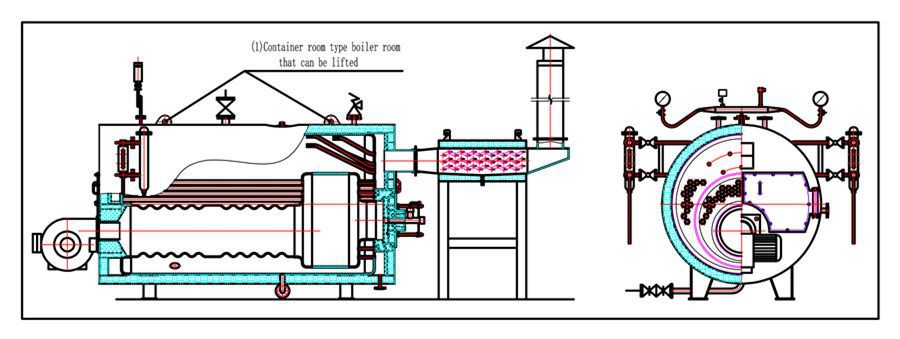

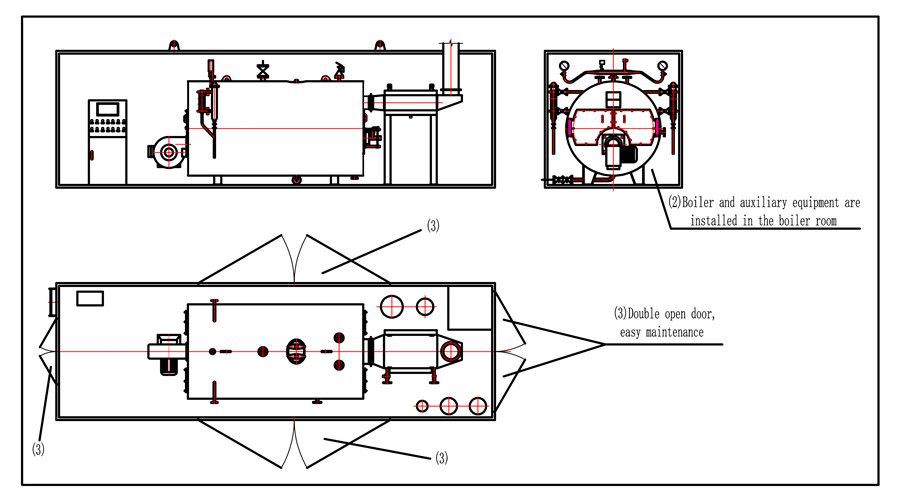

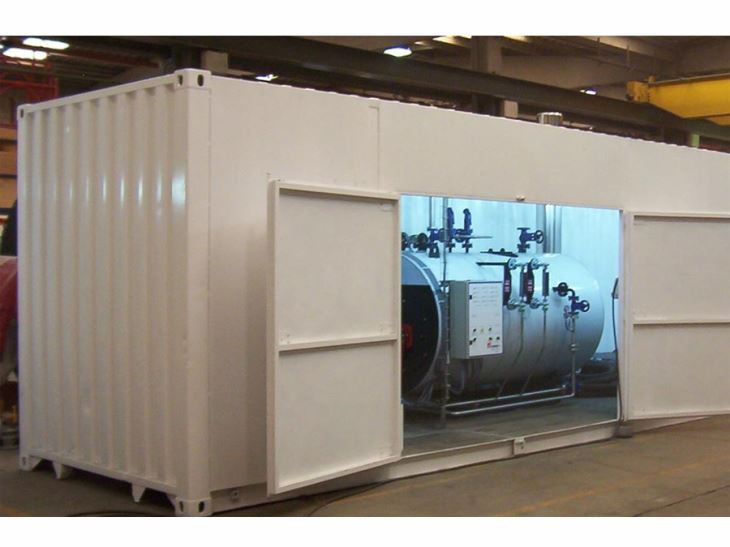

WNS گاز / روغن کانتینر اتاق بخار دیگ بخار

روغن

(kg/h)

گاز

(Nm³/h)

wnS1-0.7/1.0-Y(Q)

1

0.7/1.0

194

≥98.36

61

73

3.2×1.9×2.2

4.9

wnS2-1.0/1.25-Y(Q)

2

1.0/1.25

194

≥98.36

121

145

4.2×2.3×2.5

8

wnS3-1.0/1.25-Y(Q)

3

1.0/1.25

194

≥98.36

182

217

4.5×2.1×2.4

9

wnS4-1.0/1.25-Y(Q)

4

1.0/1.25

194

≥98.36

243

289

5.0×2.3×2.6

11

wnS6-1.25/1.6-Y(Q)

6

1.25/1.6

194

≥98.36

367

435

5.4×2.4×2.7

18.6

wnS10-1.25/1.6-Y(Q)

10

1.25/1.6

194

≥98.36

601

735

6.3×2.7×3.2

20.5

wnS15-1.25/1.6-Y(Q)

15

1.25/1.6

194

≥98.36

906

1101

8.9×3.4×3.6

42

wnS20-1.25/1.6-Y(Q)

20

1.25/1.6

194

≥98.36

1211

1467

7.8×3.6×4.0

52

روغن
(kg/h)

گاز
(Nm³/h)

WNS 0.35-95/70-Y(Q)

0.35

1.25

≥98.77

31

۳۷

2.94×1.45×1.7

2.8

WNS 0.7-95/70-Y(Q)

0.7

1.25

≥98.77

62

74

3.19×1.88×2.16

5

WNS 1.4-115/70-Y(Q)

1.4

1.25

≥98.77

119

146

4.13×2.24×2.42

8

WNS 2.8-115/70-Y(Q)

2.8

1.25

≥98.77

237

288

4.92×2.25×2.6

10.5

WNS 4.2-115/70-Y(Q)

4.2

1.25

≥98.77

357

434

5.4×2.4×2.65

17.8

WNS 7-115/70-Y(Q)

7

1.25

≥98.77

602

729

6.28×2.64×3.17

19

WNS 10.5-115/70-Y(Q)

10.5

1.25

≥98.77

903

1080

7.8×3.39×3.54

35

WNS 14-115/70-Y(Q)

14

1.25

≥98.77

1203

1450

8.12×4.4×4.1

48
